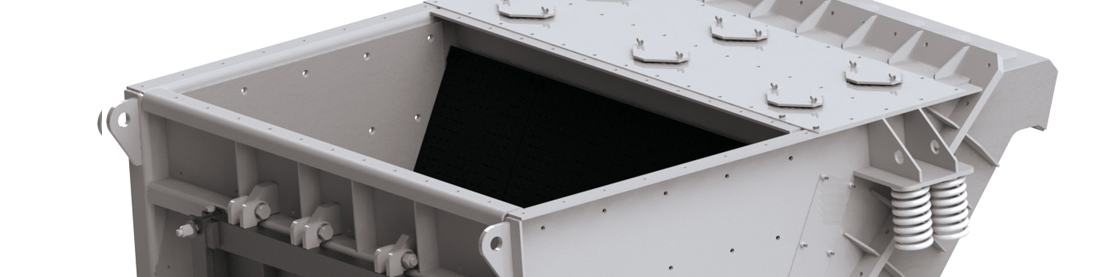

Vibrating lump crusher

Vibrations-Knollenbrecher

Vibratory crushers are vibrating systems using a vibration drive toseparate sand lumps from the iron parts in a batch and, at thesame time, crush the sand lumps into particle-size sand and conveyit. Depending on the model iron parts can only be dischargedautomatically by a drive pole reversal. The quantities and temperatures of the loaded
materialdetermine crusher design. If space isrestricted the crusher can be fitted with a higher sand discharge. For special applications we also supply combined vibratorycrushers comprising shake-out grid, lump crusher and Vibralift – all of them actuated with one drive.

Features

  • High wear-resistance
  • Designed for foundries
  • Reduced height
  • Crusher and shake-out grid (combined)
  • Elevated sand discharge
  • Separate sand and castings discharge

Benefits

  • Low operating costs
  • Small footprint
  • High operational reliability
  • Long service life
  • Good value for money
  • Proven technology

Technical specs

  • Shake-out grids measure up to 10 m²
  • Load bearing capacity of grids / screens up to 15 t
  • depending on design
  • Single or combined devices
  • Including lifting shaft (Vibralift)
  • According to overall size up to 30 t/h regenerant capacity

Application

  • Separation of castings and sand / overflow
  • Lump crushing/ waste sand recycling
