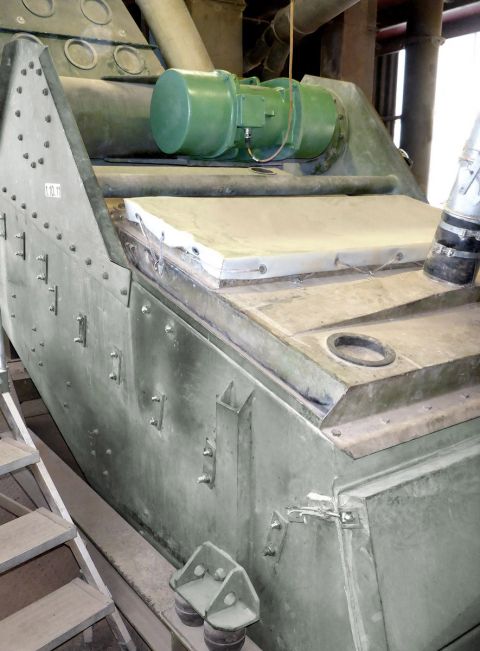

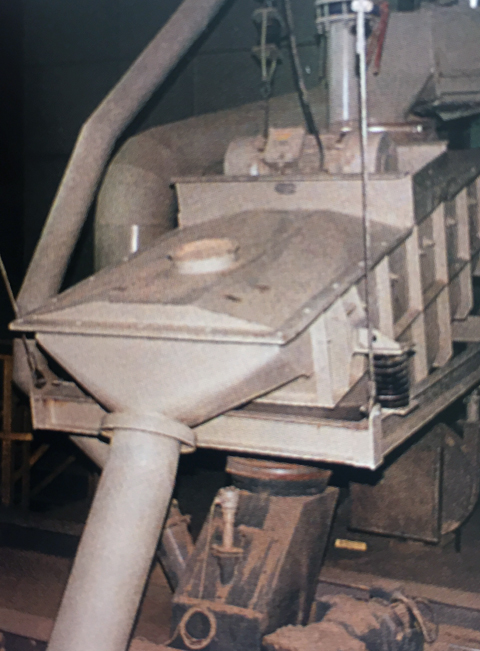

Circular motion vibrating screen

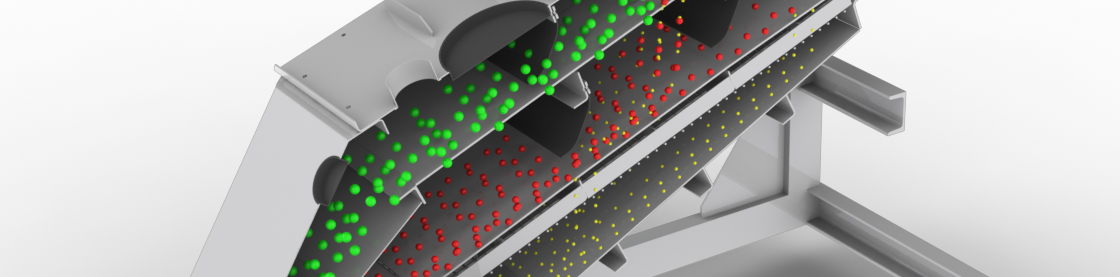

Screening machines are conveyor installations complete withsorting feature. They handle and classify media by means ofvibration. As a rule these machines are installed at an angle andfeature a circular drive mode. Other drive types can be selectedfor specific products and depending on the installation conditions.Screening machines can separate different grain sizessimultaneously. The choice of screen lining depends on the task to be performed.


  • Compact design
  • Only one drive (vibration principle)
  • Dust-proof design possible
  • High wear-resistance
  • High screen throughput up to 500 m3/ h, depending on size
  • Alternative option to linear vibratory screen


  • Low operating costs
  • High operational reliability
  • Long service life
  • Good value for money
  • Small footprint
  • Excellent separation effect

Technical specs

  • Different sizes with screen throughputs up to 500 m3/h
  • Drive: one unbalance motor / circular vibration drive
  • Optional ball peening attachments for textiles cleaning
  • Different screen linings:
  • PU, spring steel wire, VA vanadium steel, slotted hole screens,
  • perforated plates etc.


  • Screening
  • Sorting
  • Protective screening
  • Separation
  • Drainage
