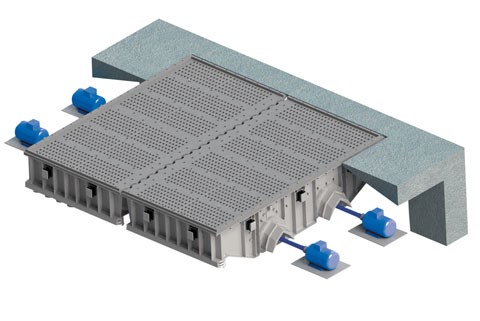

Shake-out grid

Shake-out grids are machines using predominantly verticalvibration to separate castings and sand / sand lumps. They arepredominantly used for large piece weights and low quantities.The material is charged by crane. After the process the de-sandedcastings are removed by crane. With this facility the sand shakenout is recycled in a downstream treatment plant and returned to the process.


  • High wear-resistance
  • Rugged design
  • Low overall height
  • Long service life


  • Low operating costs
  • Small footprint
  • High operational reliability
  • Long service life
  • Good value for money

Technical specs

  • Surface of shake-out grids up to 40 m² for multiple grids
  • and up to 20 m² for single grids
  • Load-bearing capacity of grids / screens up to >/=40 t
  • depending on design
  • Constructed for foundries


  • Separation of cast iron and sand
