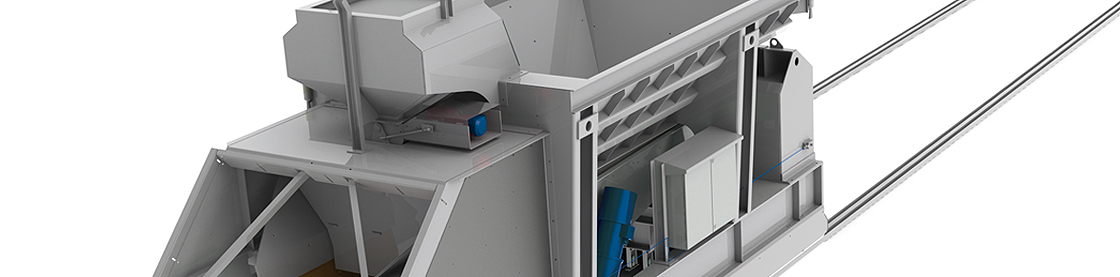

Mobile charging machine

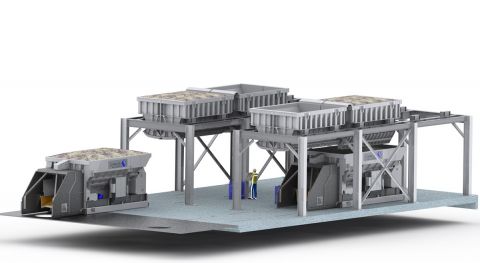

Travelling charging machines consist of a travelling gear, bin, vibratory trough conveyor and electrical control. These machines are designed to charge a wide variety and configuration of furnaces.
Being rail-borne, they can travel longitudinally, transversally or in combined directions as is required. Optionally, one or several melting furnaces can be charged with one machine. Upon request, the machine can also be designed to fit a semi-mobile supporting frame to be moved by forklift truck. To meet the specific needs in melting shops and furnace applications our charging troughs feature a rugged welded / screw-fastened, vibration-resistant design. The special »sandwich« construction with low-RPM vibratory motors ensure low-noise operation.

Exemplary type

FC 5.300x1.000 / 20 t

Technical Data:
Charging of Induction Furnance
Charge: 20t mix scrap
Size: L= 7.000 x W= 3.500 x H= 4.200 mm
Charge speed: 240 t/h
Driving speed: 10/20 cm/s
Design: Sandwich/Sound Insulation

Features

  • Side guard as kick-plate
  • Two cable drums (control panel / energy supply)
  • Back and front safety switching contact
  • One emergency pull-cord switch
  • Flash light and hooter

Benefits

  • Low operating costs
  • High operational reliability
  • Long service life
  • Good value for money
  • Small footprint
  • Reduces the noise emissions of your plant

Technical specs

  • Different sizes with bin volumes up to 20 m3
  • Sandwich designed to reduce noise
  • Replaceable wear lining incl. discharge chute
  • Side guard as kick-plate
  • Two cable drums (control panel / energy supply)
  • Back and front safety switching contact
  • One emergency pull-cord switch
  • Flash light and hooter

Application

  • Furnace charging: induction furnaces / rotary furnaces etc.
  • In the industry: foundry
