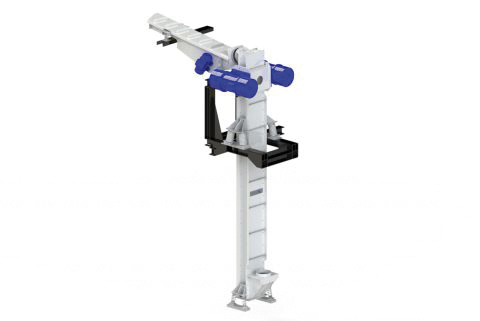

Vibralift vertical conveyor

Vibralift is a material handling system using directed, vertical vibrations to convey the media upwards in a closed shaft. The lifting shaft does not contain any moving parts requiring regular maintenance or replacement. Furthermore, the Vibralift makes it possible to convey products with temperatures up to 350° C (e.g. sand in a melting shop). Lifting height

Features

  • Compact design
  • No revolving parts (goods conveyed by vibration)
  • Dust-proof design
  • High wear-resistance
  • High conveying capacity up to 13 m³/ h, depending on size
  • Alternative option to spiral, Z-conveyor and bucket elevator

Benefits

  • Low operating costs
  • High operational reliability
  • Long service life
  • Good value for money
  • No extra costs for dust guard
  • Small footprint
  • Handles hot materials of up to 350° C

Technical specs

  • Dimensions: width / conveying capacities
  • 200 mm/ 2.5 m3/h, 300 mm/ 3.5 m3/h,
  • 400 mm/ 5.0 m3/h, 500 mm/ 6.5 m3/h,
  • 600 mm/ 7.5 m3/h, 700 mm/ 8.5 m3/h,
  • 800 mm/10.0 m3/h, 1.000 mm/13.0 m3/h
  • Conveying height from 1.500 mm to 4.500 mm
  • Drives: 2 unbalance motors
  • Drive positions: top or bottom
  • Materials handled: grainy, up to 15 mm, pourable and dry
  • Handles hot materials of up to 350 C

Application

  • Continuous conveying, vertical conveying
    In the industry:
  • feed, foundry, pharmaceuticals / chemicals,
  • steel mills, stone /sand/ gravel
